Swedish MSX Keyboard


http://www.samdal.com/spectravideo.htm

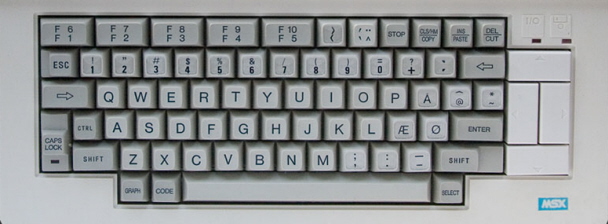

The Swedish MSX keyboard is used in the generic MSX Swedish and MSX2 Swedish machines.

It's also used in one specific MSX machine : Spectravideo SVI-738 Swedish . This machine is without numeric keypad.

The MSX keyboard is very similar to a standard PC keyboard. The typewrite keys are almost the same as well as the numeric keypad. The Caps key toggles bigger sized alphabet characters.

The MSX keyboard has five physical function keys. To access function key 6 to 10, you need to hold down the SHIFT key and press one of the keys F1 to F5.

As some MSX keys don't exist on a PC keyboard, the emulator makes also some adjustements to support the complete MSX keyboard :
- the PC key before the "1" key is used for emulate the extrem right MSX key on the second row
- the extrem right PC key on the third row is used to emulate the MSX key after F5

Specific MSX keys are mapped to the following PC keyboard keys :

MSX key   PC key

Select   End   Used in some games and applications (it's also the case of the Esc key).
Stop   Page Up   Allows to pause and resume a task in the MSX-BASIC or MSX-DOS environment. When you press this key while holding the Ctrl key, the current task will be abruptly broken.
Clr Home   Home   Allows to move the cursor to the top left of the screen. If you press Shift + Clr Home, the screen will be cleared.
Graph   Left Alt   Gives graphical characters by pressing it with a normal character. Can be combined with Shift.
Code   Right Alt   Gives special or accented characters by pressing it with a normal character. Can be combined with Shift.
Comma on numpad   Page Down
Accent Mark   Right Ctrl   Allows to put an accent mark on a vowel. You need to press it, alone or with control key(s), then to press on the vowel key
- Accent Mark then the vowel key : accent grave (`). Example : à.
- Shift + Accent Mark
then the vowel key : accent acute (´). Example : á.
- Code
+ Accent Mark then the vowel key : umlaut / accent diæresis (¨). Example : ä
- Shift + Code + Accent Mark
then the vowel key : accent circumflex (^). Example : â.


The tables underneath show you how to generate special characters with key-combinations of your PC keyboard :

Normal mode   Normal mode + Shift

Code   Code + Shift

Graph   Graph + Shift


The extrem right character of the fourth row is the Accent Mark.
